The OASYS 3001A arm is the strongest and most versatile of the OASYS medium duty products like its sister product the OASYS 3001.

Similar in design to the OASYS 2001, it has a higher load capability and more features such as a device coupler with brake. The 3001A arm is capable of supporting loads of up to 30kg (66lb); the OASYS 3001A can carry devices such as monitors/surgical displays, lights and cameras as well as other devices.

All OASYS 3001A arms are available with several customizable features:

  • Precise load adjustment
  • Parallel calibration
  • Height limit adjustability
  • Option for full 360° rotation with multi-pole slip rings or the standard partial 330° rotation with stops
  • The 3001 arm main use is for surgical displays with a 330° rotation stop

Customizable OEM solutions are also available. Contact us for a quote.

COMMITTED TO QUALITY.
COMMITTED TO YOU.

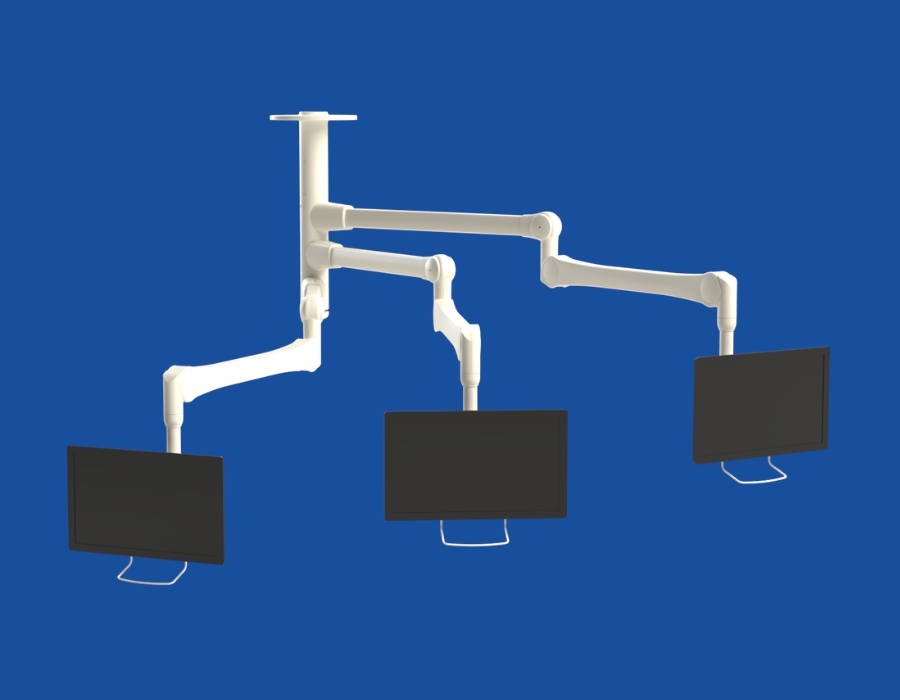

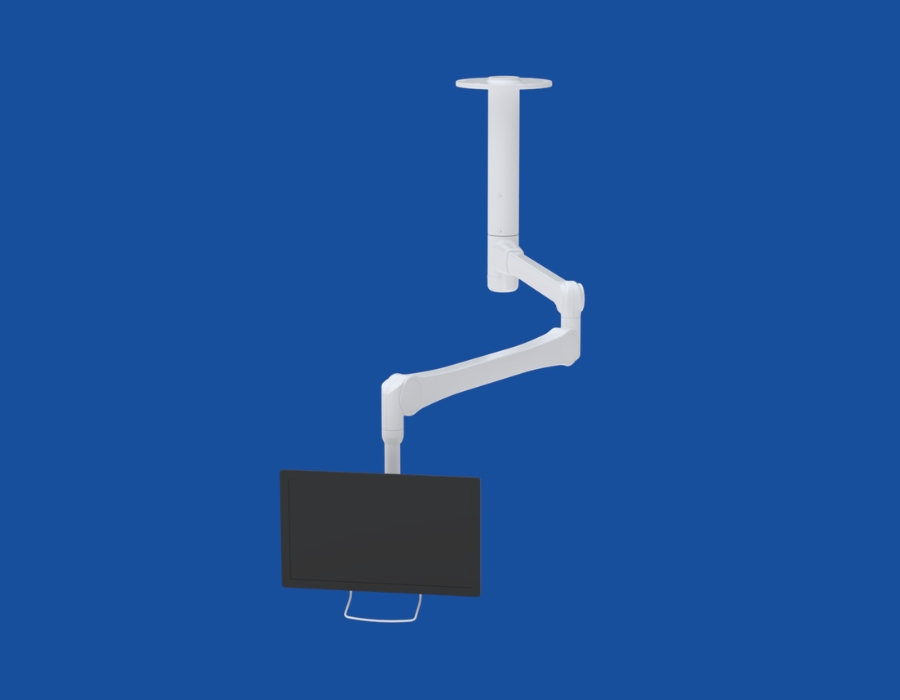

  • Ceiling mount single

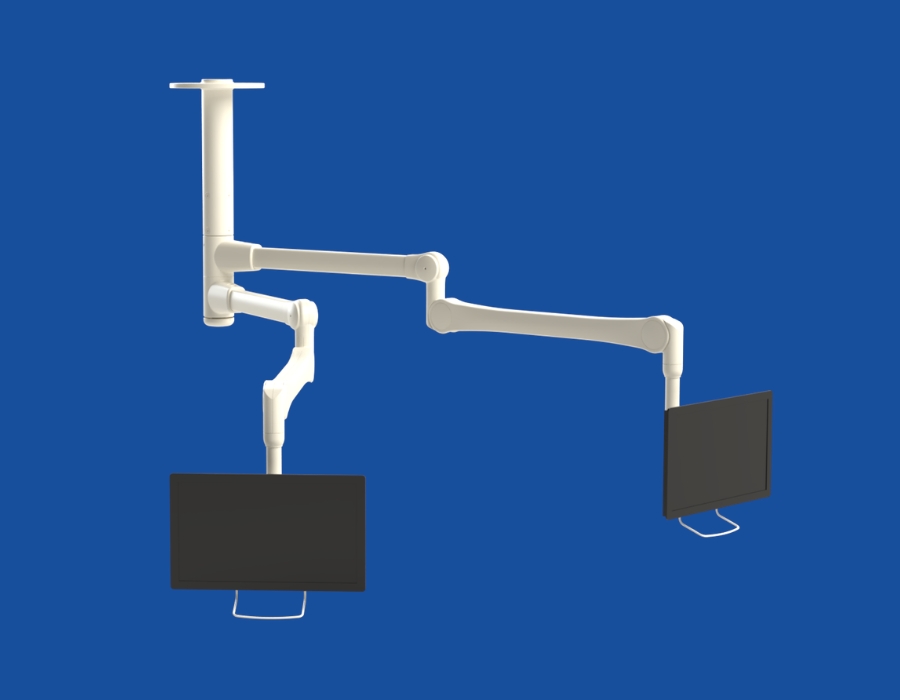

  • Ceiling mount dual
  • Wall Mount
  • Floor Stands/Mobile Stands
  • Accommodates loads up to 30kg (66lbs)
  • Sleek design with similar look to the 2001
  • Heavy duty 330° rotation stop that has been rigorously tested to avoid breakage
  • Excellent cable management abilities
  • Easily serviceable in the field

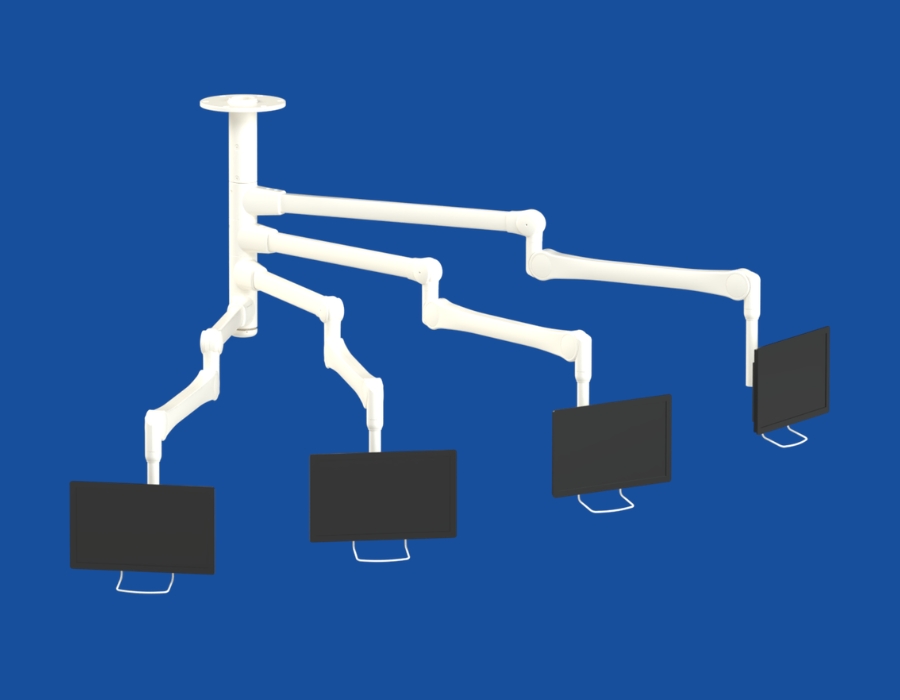

  • Available for wall mount, ceiling mount, floor stand mount and Central Axis
  • Easy to mount and dismount
  • Multiple colors RAL colors of the arm
  • Multiple colors for the round end covers
  • Needle bearings for smooth rotation of the connected device
  • 3001 device end fits works with most Monitor yokes including OASYS Monitor yokes
  • 32mm fixed end stem fits industry standard extension arm sleeves for normal light heads making it simple to use most existing central axises in the field
  • Heavy duty fixed end pin stop that has been rigorously tested to avoid breakage
  • Brake screw on the device end with flat head or allen key tool adjustment

Load range: 4.5-30kg (10-66lb)
Max. Single Cable Diameter: 19mm (0.75″)
Max. Cable Allowance: 465mm² (0.72in²)
Max. Vertical Travel: 45° upwards and 45° downwards
Mounting Configurations: Ceiling mounted, central axis, wall-mounted
Approvals: UR, URC, CE
Classifications: IEC 60601-1, UL 60601-1, CAN/CSA-C22.2 No. 601.1-M90
Colors: RAL 9010, RAL 7035, RAL 9002, custom colors available upon request
