LCH
The OASYS LCH arm is designed specifically to work in low ceiling environments. Unlike other OASYS arms, the LCH supports its loads in-line with the rest of the arm and does not require parallel adjustment and effectively requires less overhead clearance.
All OASYS LCH arms are available with several customizable features:
- Precise load adjustment
- Parallel calibration
- Height limit adjustability
- Option for full 360° rotation with multi-pole slip rings or partial 330° rotation with stops
Customizable OEM solutions are also available. Contact us for a quote.
COMMITTED TO QUALITY.
COMMITTED TO YOU.

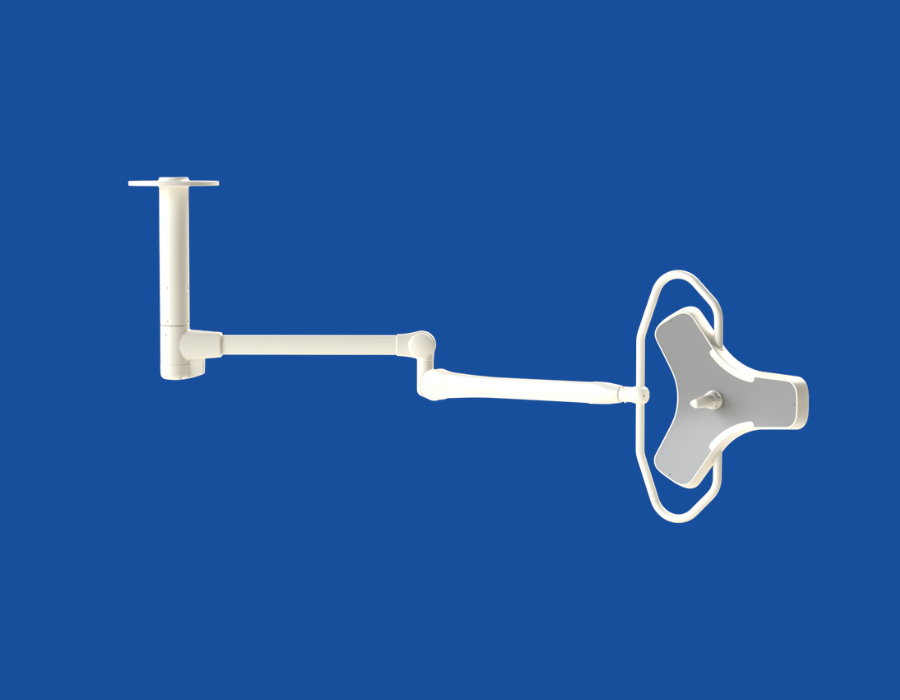

- Ceiling mount single

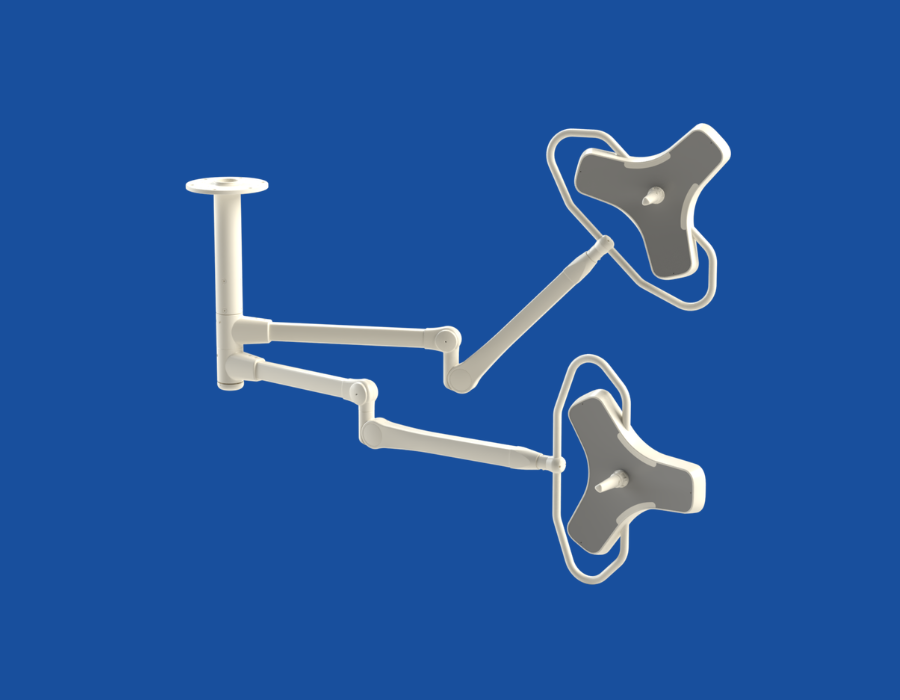

- Ceiling mount dual
- Wall Mount
- Floor Stands/Mobile Stands
- Loads up to 265 Nm
- Innovative design with similar look to the 2001 and 3001
- Excellent cable management abilities
- Easily serviceable in the field
- Available for wall mount, ceiling mount, floor stand mount and Central Axis
Load range: 45-265Nm (33-195lb.ft)
Max. Single Cable Diameter: 19mm (0.75″)
Max. Cable Allowance: 465mm² (0.72in²)
Mounting Configurations: Ceiling mounted, central axis, wall-mounted
Approvals: UR, URC, CE
Classifications: IEC 60601-1, UL 60601-1, CAN/CSA-C22.2 No. 601.1-M90
Colors: RAL 9010, RAL 7035, RAL 9002, custom colors available upon request
