Slip Rings
OASYS Slip Sings
Transmit power, low frequency and HD signals
• Customizable conductive ring configurations
• Customizable interface harness options
• Same footprint as industry standard 3P Slip Rings
• Separable connector, no need for intermediate harnesses
• Direct continuous signal without any delay
• Certified lubrication installed for easier installation
Customized harness and connections available upon request!
COMMITTED TO QUALITY.
COMMITTED TO YOU.

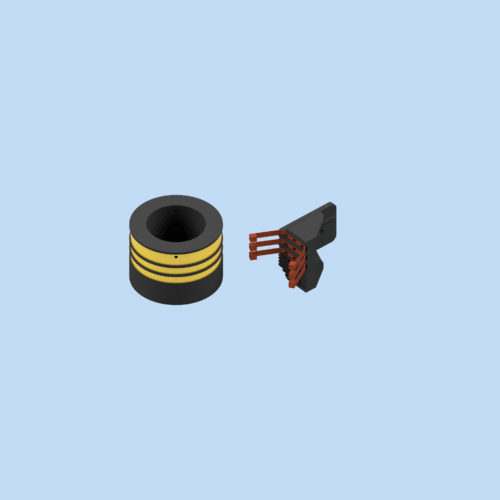

- 3 Pole Male/Rotor Plug and 3 Pole Female/Receptacle Stator

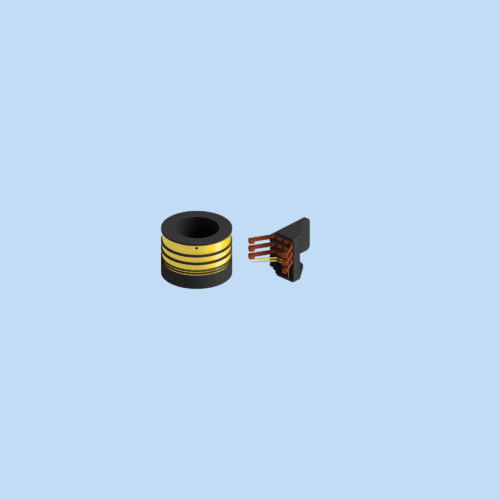

- 5 Pole Male/Rotor Plug and 5 Pole Female/Receptacle Stator

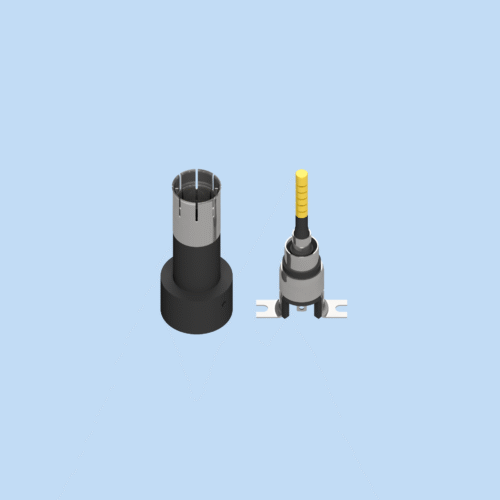

- 9 Pole Male/Rotor Plug and 9 Pole Female/Receptacle Stator
- Number of Circuits - Up to 9
- Max Voltage - 48 V DC
- Max Current - 10A Power , 2A Signal
- Connection Power - Leads AWG16/AWG17
- Signal - Leads AWG 22/AWG 24 Twisted Pairs
- Max RPM - 20 RPM
- Protection Class - IP00
- Temperature Range - 0°C - +50°C
- Working Humidity - ≤60%RH
- Min Dielectric Strength - 500 VAC (50Hz)
- Min Insulation Resistance - 100MΩ @ 500VDC
- Signal to Noise - 55db @ 5 RPM 5V DC & 50mA
